AStarGridSearch

Quick Intro

This package contains types and methods for searching for paths on a 2D grid using the A* algorithm. Its main use is to get the path cost (distance), but it can return the full path as well. The PathCost type is set up in such a way that it can be used as a cost function for optimization routines. A PathCost is created for a set start cell; searches for multiple goal cells can be performed while keeping the same cost map between them. This means distances to intermediate cells don't need to be re-computed each time.

Following is a quick example of the main functionality of this package.

julia> using AStarGridSearch
julia> occupancy = zeros(Bool, 10, 10); # open area
julia> obstacle = CartesianIndex.([
           tuple.(2, 3:5)...,
           tuple.(3, 3:5)...,
           tuple.(4, 4:6)...,
           tuple.(5, 5:7)...,
           tuple.(6, 4:6)...,
           tuple.(7, 3:5)...,
           tuple.(8, 3:5)...,
       ]);
julia> occupancy[obstacle] .= 1;
julia> occupancy # shown with obstacle10×10 Matrix{Bool}:
 0  0  0  0  0  0  0  0  0  0
 0  0  1  1  1  0  0  0  0  0
 0  0  1  1  1  0  0  0  0  0
 0  0  0  1  1  1  0  0  0  0
 0  0  0  0  1  1  1  0  0  0
 0  0  0  1  1  1  0  0  0  0
 0  0  1  1  1  0  0  0  0  0
 0  0  1  1  1  0  0  0  0  0
 0  0  0  0  0  0  0  0  0  0
 0  0  0  0  0  0  0  0  0  0
julia> start = CartesianIndex(4, 3);
julia> resolution = (1, 1);
julia> pathCost = PathCost(start, occupancy, resolution); # construct search object
julia> goal = CartesianIndex(7, 9);
julia> pathCost(goal) # calculate distance to goal; must be called before other methods12.656854249492381
julia> getPath(pathCost, goal) # full path from start to goal if it exists12-element Vector{CartesianIndex{2}}:
 CartesianIndex(4, 3)
 CartesianIndex(5, 3)
 CartesianIndex(6, 3)
 CartesianIndex(7, 2)
 CartesianIndex(8, 2)
 CartesianIndex(9, 3)
 CartesianIndex(9, 4)
 CartesianIndex(9, 5)
 CartesianIndex(9, 6)
 CartesianIndex(9, 7)
 CartesianIndex(8, 8)
 CartesianIndex(7, 9)
julia> finalOrientation(pathCost, goal) # angle in radians between the last two cells2.356194490192345
julia> pathCost(goal) # returns saved value, no new computations12.656854249492381
julia> pathCost(CartesianIndex(4, 9)) # run with new goal; computes quicker due to saved costs11.071067811865476

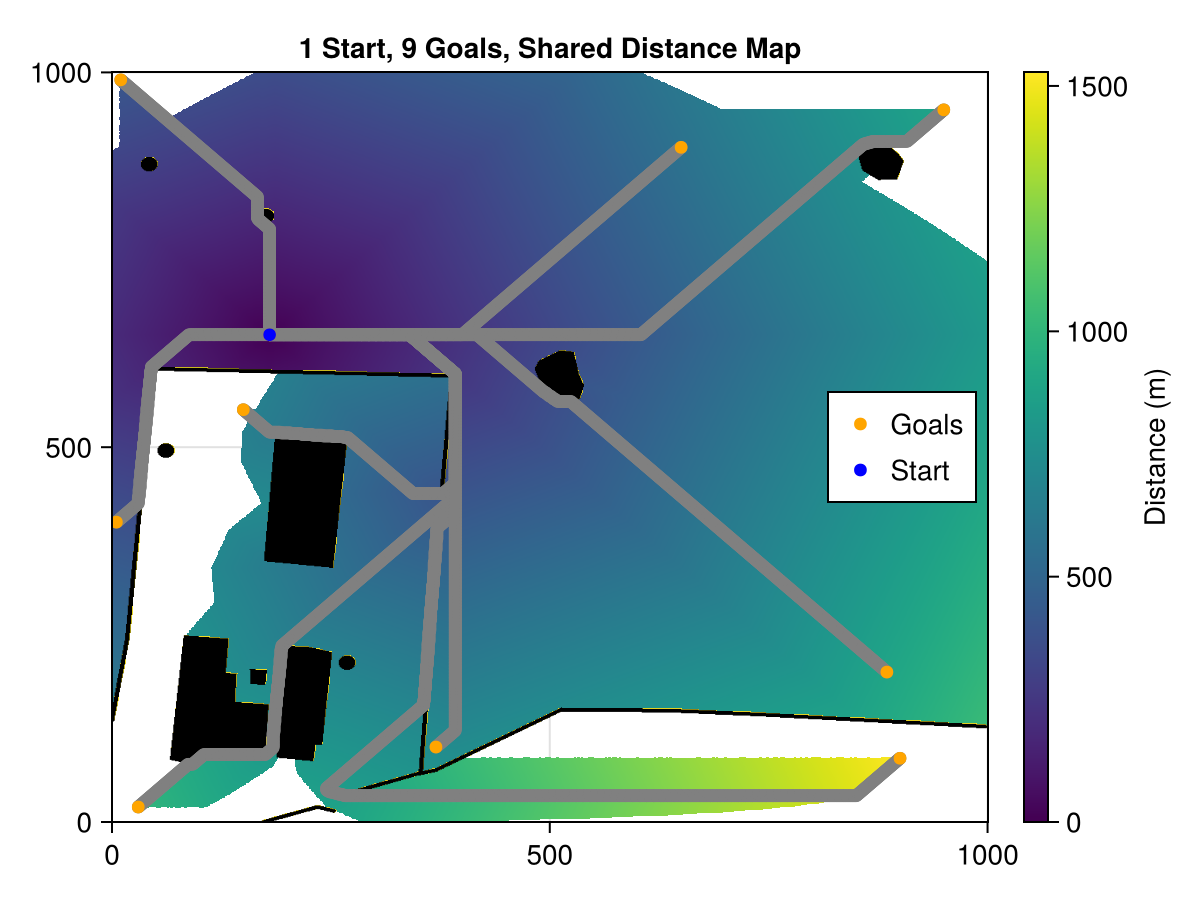

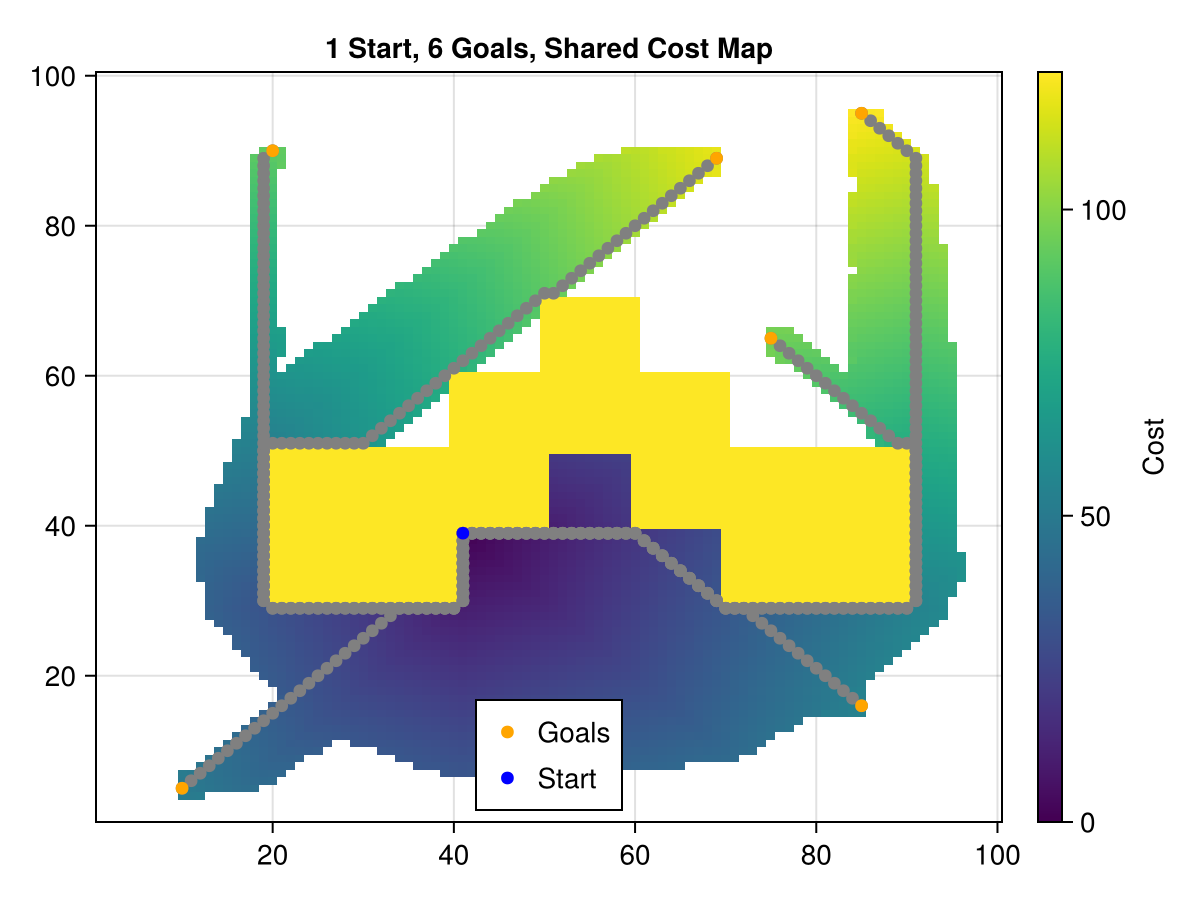

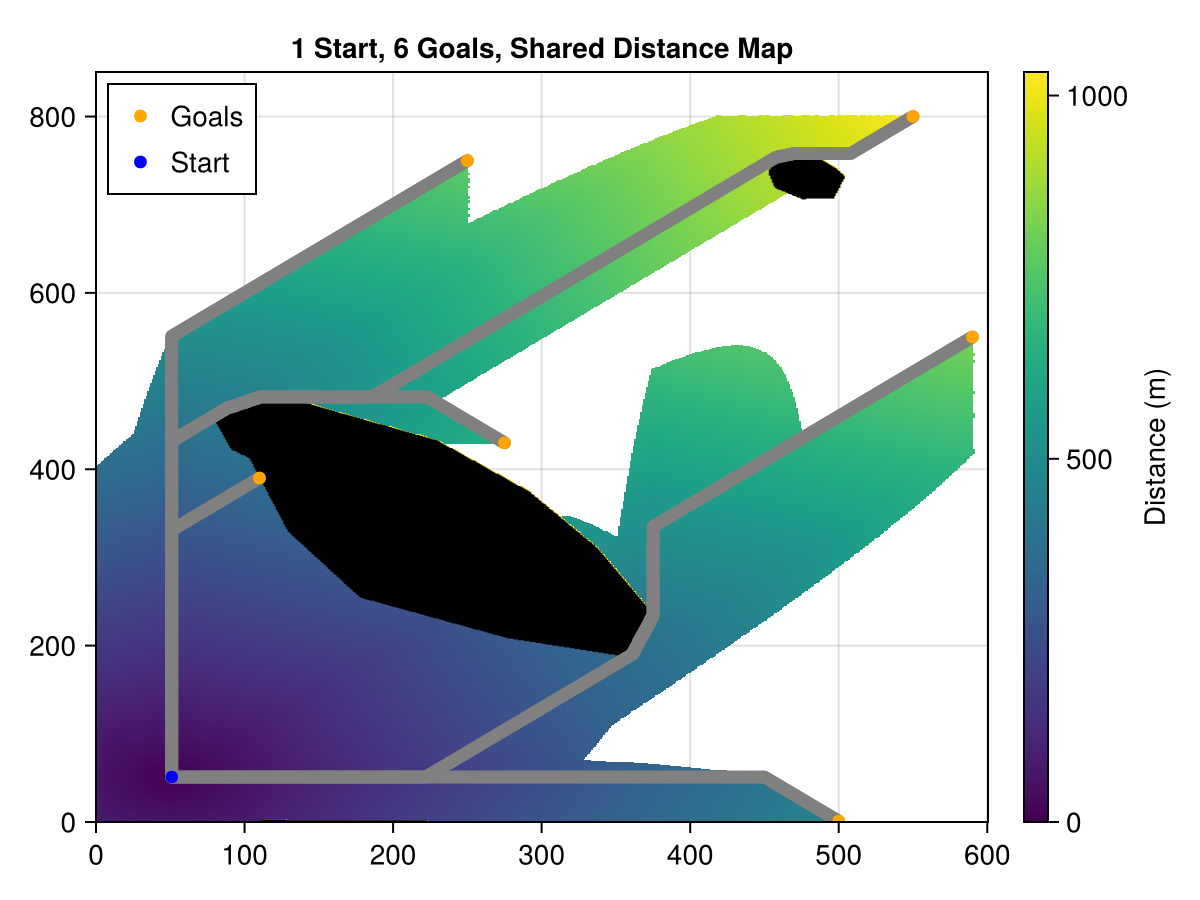

Here are examples of the resulting paths and cost maps from the algorithm. The code that generated these can be found in the scripts directory of the repo:

Further Info

See below for further details on each type and method.

AStarGridSearch.PathCost
AStarGridSearch.PathCost
AStarGridSearch.PathCost
AStarGridSearch.finalOrientation
AStarGridSearch.getPath
AStarGridSearch.previousStep
AStarGridSearch.weightedEuclidian

AStarGridSearch.PathCost — Type

Struct for PathCost function data. Previous computations are kept track of in its data. Can be used multiple times for the same start cell, saving computation.

The cells of the costMatrix contain the distance to them from the start cell. NaN is a placeholder meaning no path has been calculated to that cell yet. Inf means that cell is not reachable from the start cell.

Fields:

start::Any
costMatrix::Any
resolution::Any
diffs::Any
dist::Any
heuristic::Any
frontier::Any

source

AStarGridSearch.PathCost — Method

PathCost(
    start,
    occupancy,
    resolution;
    diagonals,
    dist,
    heuristic
) -> PathCost

The constructor initializes the path search algorithm, created for each new start cell.

Inputs:

start: the starting cell in the matrix
occupancy: a matrix indicating which cells are occupied
resolution: a vector of the width and height of each cell
diagonals: whether to include connectivity to diagonal cells or not (default true)
dist: function to compute distance from current to next cell (default weightedEuclidian)
heuristic: function to compute estimated distance from current to goal cell (default weightedEuclidian)

Note: this type and associated methods (except for finalOrientation) can in fact be used with any N-dimensional cost array, not just a matrix.

The parameters dist and heuristic can be passed any functions to compute distances as long as they take as input a current cell, a goal cell, and a cell resolution.

source

AStarGridSearch.PathCost — Method

Search for a path to a desired goal cell using the A* algorithm.

Returns the path cost, which will be Inf if it is unreachable.

If the cells of the path are desired, use the getPath function.

source

AStarGridSearch.finalOrientation — Method

finalOrientation(S::PathCost, goal) -> Any

Given a PathCost and a goal point, this function returns the angle in radians of the direction from penultimate cell to goal cell, effectively the direction at the end of the path to the goal.

source

AStarGridSearch.getPath — Method

getPath(S::PathCost, goal) -> Vector

Given a PathCost and a goal point, this function returns the entire list of cells from the start to the goal. Only useful to be called after the PathCost object is called with the goal cell.

source

AStarGridSearch.previousStep — Method

previousStep(current, costMatrix) -> Any

A function used internally to find what the previous step was in order to arrive at the current cell in the cost matrix.

source

AStarGridSearch.weightedEuclidian — Method

weightedEuclidian(x1, x2, weights) -> Any

A function to calculate the euclidean distance between two cells based on a weighting along each dimension. In mathematical terms:

\[\left\lVert w \circ (x_2 - x_1) \right\rVert_2\]

where $x_1$ and $x_2$ are the cells, $w$ is the dimension weights, and $\circ$ is a Hadamard or element-wise product.

source
